Accuracy Comparison of 2D Chessboard Calibration for 3D Motion Analysis

Generated with sparks and insights from 12 sources

Introduction

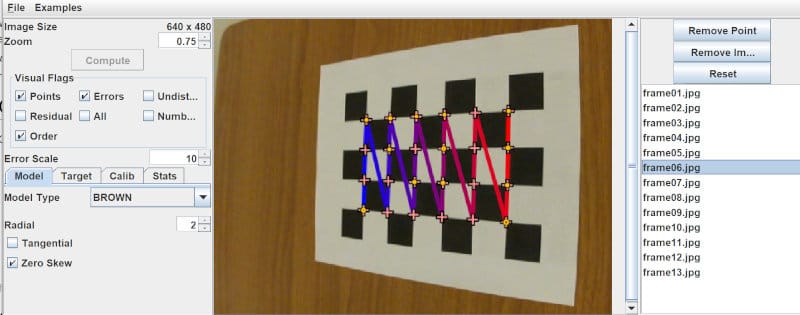

2D Chessboard Calibration: This method uses a planar chessboard pattern to estimate a camera's intrinsic and extrinsic parameters. It is widely used due to its simplicity and effectiveness.
Accuracy: Studies indicate that 2D chessboard calibration provides highly accurate results, comparable to other traditional methods like Wand Calibration, especially in controlled environments.
Comparison with Other Methods: Traditional methods like Zhang's and Tsai's calibration methods are often compared with 2D chessboard calibration. Zhang's Method is noted for its robustness and accuracy, while Tsai's Method is simpler but less accurate.

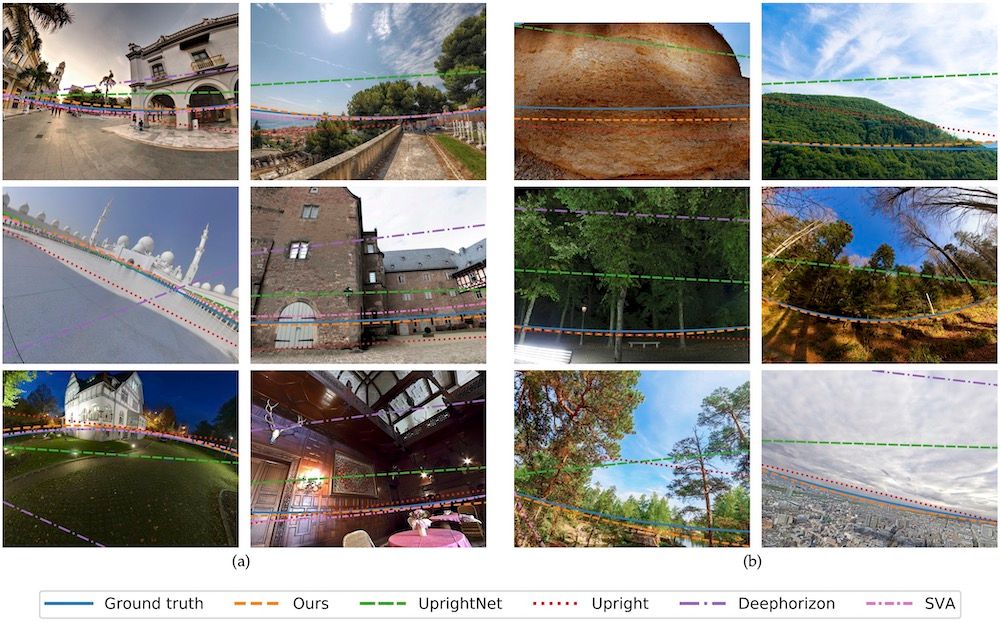

Deep Learning Methods: Emerging methods like DeepCalib use deep learning for calibration and can handle Wide Field-of-View Cameras. However, they generally offer lower accuracy compared to traditional methods.
Application in 3D Motion Analysis: 2D chessboard calibration is effective for 3D motion analysis, particularly in Underwater Applications where it has shown similar accuracy to wand calibration.

Zhang's Method: Introduced in 1998, it uses multiple planar images to estimate camera parameters. Known for its robustness and accuracy.
Tsai's Method: Introduced in 1987, it uses a single image with a coplanar calibration object. Simpler but less accurate than Zhang's method.
DeepCalib: A deep learning-based method that estimates intrinsic parameters from a single image. Suitable for wide field-of-view cameras.
Wand Calibration: Uses a wand with markers to estimate camera parameters. Comparable in accuracy to 2D chessboard calibration in underwater applications.
2D Chessboard Calibration: Uses a planar chessboard pattern to estimate camera parameters. Widely used due to its simplicity and effectiveness.

Zhang's Method: Achieves high accuracy with a mean Reprojection Error of 0.0283.
Tsai's Method: Lower accuracy with a mean reprojection error of 2.5077.
DeepCalib: Lowest accuracy among the three methods with a mean reprojection error of 3.5272.
2D Chessboard Calibration: Provides highly accurate results, comparable to wand calibration, especially in controlled environments.
Reprojection Error: A common metric for measuring calibration accuracy, representing the Euclidean distance between projected 3D points and their corresponding 2D points.

Zhang's Method: Requires multiple images and point correspondences for high accuracy. Error decreases significantly with more data.
Tsai's Method: Uses a single image but requires many point correspondences. Accuracy improves with more points.
DeepCalib: Requires only one image and no point correspondences. Suitable for quick calibration but less accurate.
2D Chessboard Calibration: Effective with a moderate number of images and point correspondences.
Thresholds: For Zhang's method, at least 5 images or 10 points per image are needed for decent accuracy.

Zhang's Method: Robust to noise but accuracy decreases with higher noise variance.
Tsai's Method: Less robust to noise, with higher variance in reprojection error when noise is added.
DeepCalib: Not evaluated for noise robustness in the study.
2D Chessboard Calibration: Generally robust in controlled environments but can be affected by noise in point correspondences.
Gaussian Noise: Adding Gaussian noise to 3D and 2D coordinates shows that 3D noise has a more significant impact on accuracy.

3D Motion Analysis: 2D chessboard calibration is effective for 3D motion analysis, particularly in underwater applications.
Underwater Applications: Both wand and 2D chessboard calibration methods provide similar and highly accurate results.
Computer Vision: Camera calibration is a key procedure in computer vision, leading to tasks like 3D reconstruction.
Wide Field-of-View Cameras: DeepCalib is suitable for calibrating wide field-of-view cameras, such as fisheye lenses.
Real-Time Calibration: Deep learning methods like DeepCalib can be used for real-time calibration without the need for calibration objects.

DeepCalib: Uses deep learning to estimate intrinsic parameters from a single image. Suitable for wide field-of-view cameras.
SingleNet: A network architecture in DeepCalib that estimates focal length and distortion parameters.
DualNet: Uses two independent networks for estimating focal length and distortion parameters separately.
SeqNet: Estimates focal length first, then uses it to estimate distortion parameters.
Advantages: Does not require calibration objects or point correspondences, making it easier to use in real-time applications.
