Introduction

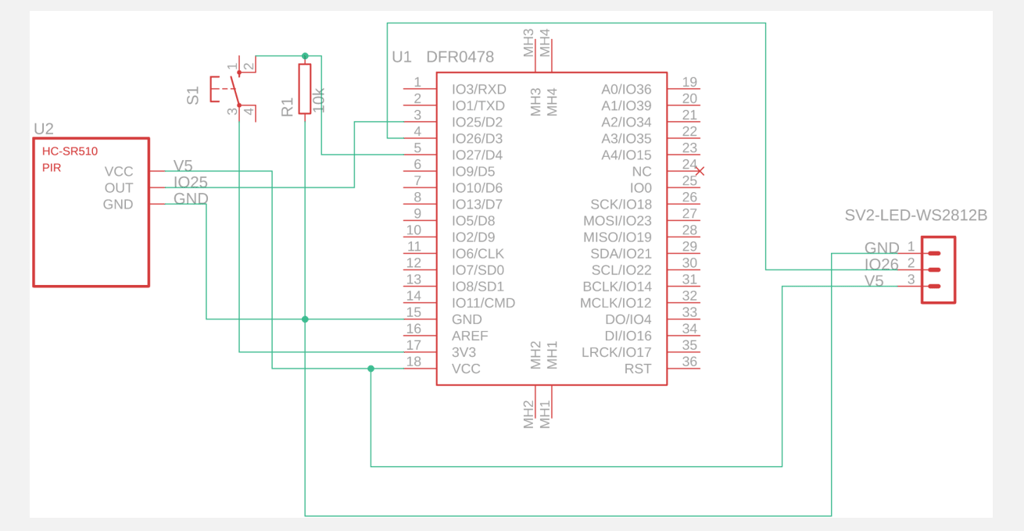

  • Power Supply: Connect the VCC pin of the WS2812B LED strip to the 5V pin of the ESP32-WROOM-32D.

  • Ground Connection: Connect the GND pin of the LED strip to the GND pin of the ESP32.

  • Data Line: Connect the DIN (Data Input) pin of the LED strip to a digital pin on the ESP32, such as GPIO2 or GPIO16.

  • Resistor: Place a 330 Ohm resistor in series with the data line to protect the data pin.

  • Capacitor: Use a 4700uF capacitor across the VCC and GND of the LED strip to stabilize the power supply.

  • External Power: For longer strips, use an external 5V power supply to power the LED strip directly, ensuring to connect the ground of the power supply to the ground of the ESP32.

  • Level Shifter: If experiencing issues, use a logic level shifter to convert the 3.3V data signal from the ESP32 to 5V for the LED strip.

Power Supply [1]

  • Direct Connection: For small LED strips, connect the VCC pin of the strip to the 5V pin of the ESP32.

  • External Power: For larger strips, use an external 5V power supply to avoid overloading the ESP32.

  • Grounding: Ensure the ground of the external power supply is connected to the ground of the ESP32 to maintain a common reference.

  • Capacitor: Place a 4700uF capacitor across the VCC and GND of the LED strip to smooth out power fluctuations.

  • Voltage Drop: For long strips, inject power at multiple points to prevent voltage drop along the strip.







Data Line Connection [2]

  • GPIO Pin: Connect the DIN pin of the LED strip to a digital pin on the ESP32, such as GPIO2 or GPIO16.

  • Resistor: Use a 330 Ohm resistor in series with the data line to protect the data pin.

  • Level Shifter: If the LED strip does not respond correctly, use a logic level shifter to convert the 3.3V signal from the ESP32 to 5V.

  • Data Integrity: Ensure the data line is as short as possible to reduce signal degradation.

  • First LED: The first LED in the strip acts as a level shifter for subsequent LEDs.







Using WLED [2]

  • Installation: Connect the ESP32 to your computer and navigate to install.wled.me to install the WLED firmware.

  • WiFi Setup: Enter your WiFi credentials to connect the ESP32 to your network.

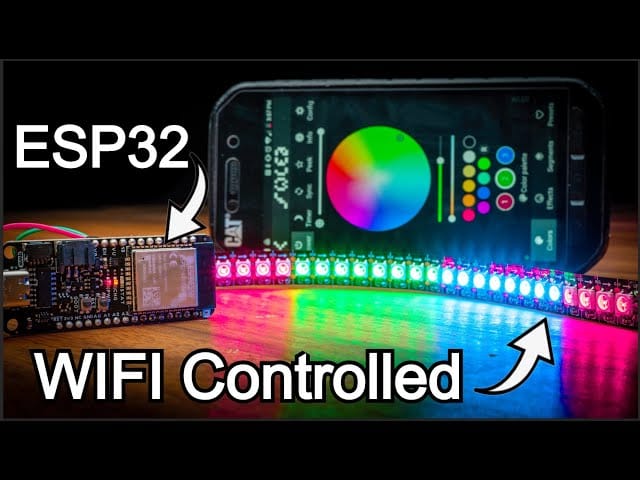

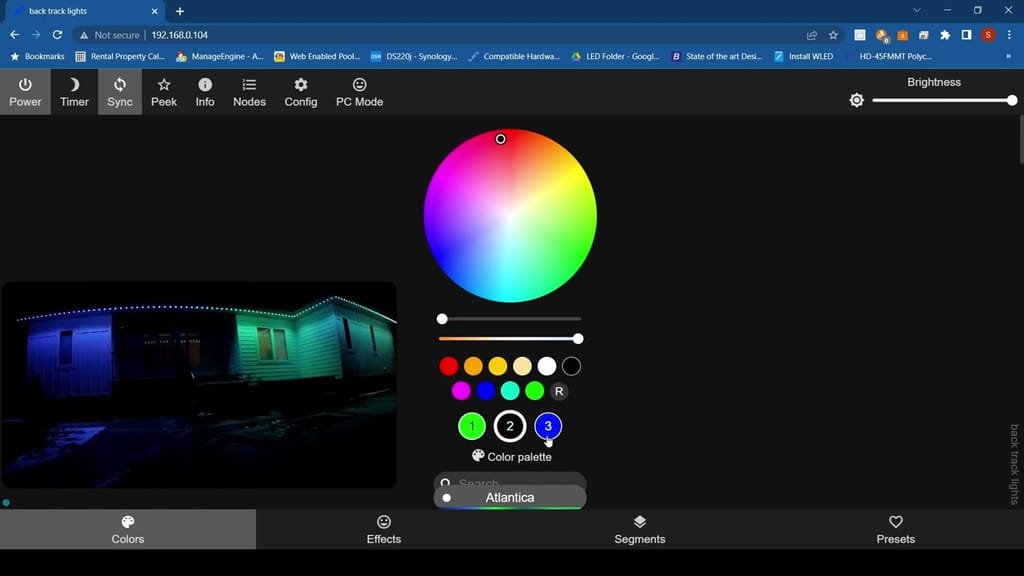

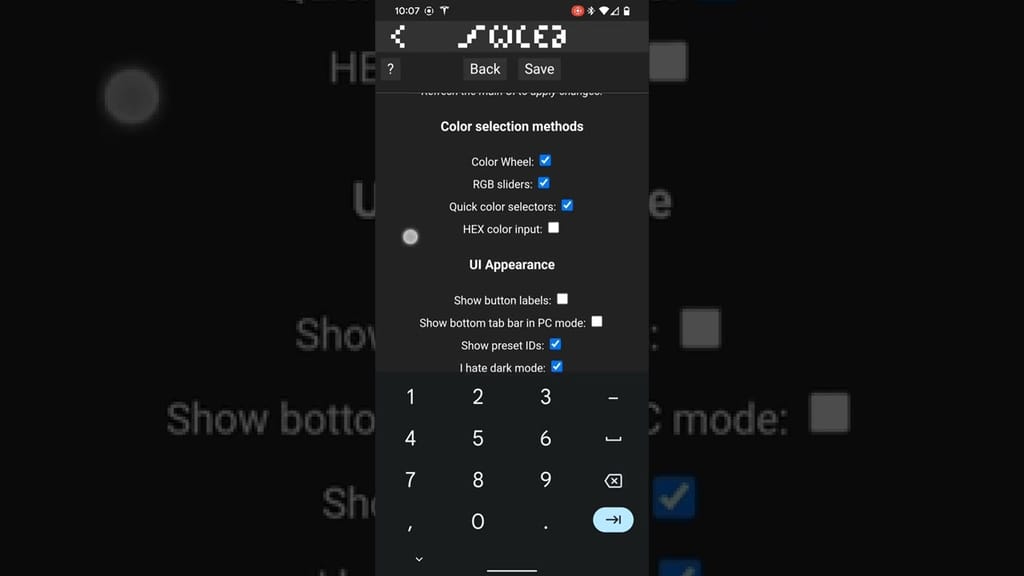

  • Control: Use the WLED app on your smartphone to control the LED strip.

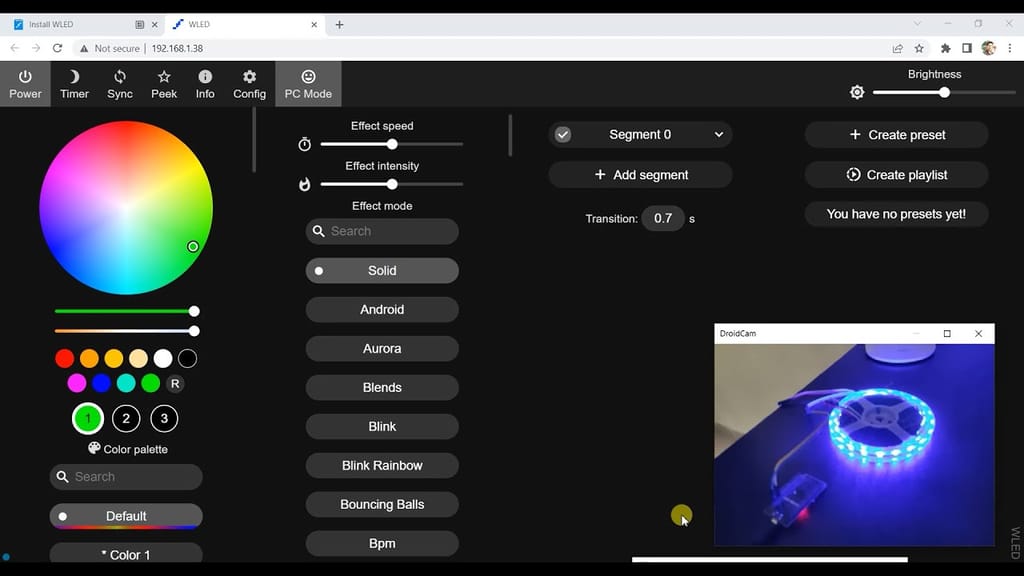

  • Configuration: Set the number of LEDs and the GPIO pin used for data in the WLED settings.

  • Effects: WLED offers over 180 different lighting effects that can be customized through the app.







Troubleshooting [3]

  • Flickering LEDs: Ensure a stable power supply and check all connections.

  • Non-responsive LEDs: Verify the data line connection and consider using a level shifter.

  • WiFi Issues: Ensure the ESP32 is connected to a 2.4 GHz network, as it does not support 5 GHz.

  • Power Issues: Check for voltage drops along the strip and inject power at multiple points if necessary.

  • Software: Ensure the WLED firmware is correctly installed and configured.







Additional Tips [1]

  • Logic Level: Use a 74HCT14 or 74HC14 chip for reliable level shifting.

  • Power Injection: For long strips, inject power every 60 LEDs to prevent voltage drop.

  • Component Quality: Use high-quality components to ensure reliable operation.

  • Testing: Test with a small section of the strip before connecting the entire length.

  • Documentation: Refer to the WLED documentation for detailed setup and configuration instructions.
