Introduction

  • Enhanced A-MPDU: The IEEE 802.11ax standard introduces an improved A-MPDU (Aggregate MAC Protocol Data Unit) technique to reduce header overhead and enhance efficiency.

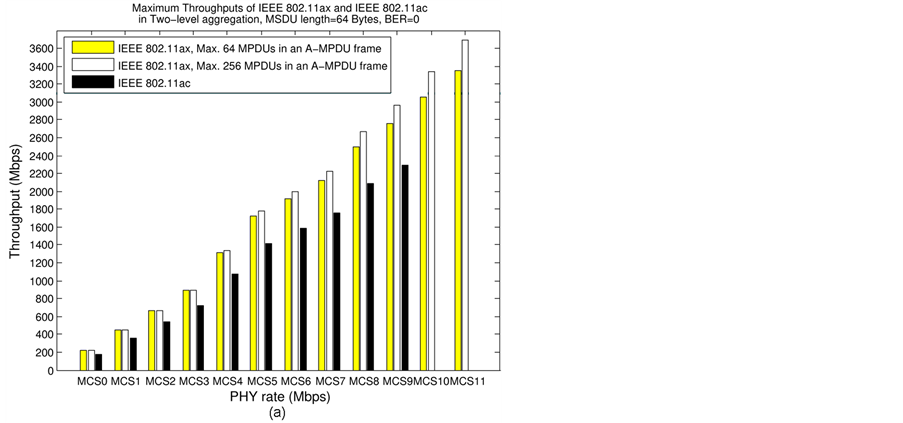

  • Two-Level Aggregation: This technique involves a two-level aggregation method that combines multiple MPDUs (MAC Protocol Data Units) into a single frame, reducing the overhead associated with each individual frame.

  • Frame Aggregation: Frame aggregation is a key feature in IEEE 802.11ax, which helps in improving throughput by combining multiple frames into one, thus reducing the overhead.

  • Header Overhead Reduction: The enhanced A-MPDU method specifically targets the reduction of header overhead, which is crucial for achieving higher data rates and better network performance.

  • Efficiency: By reducing the header overhead, the enhanced A-MPDU technique allows for more efficient use of the available bandwidth, leading to improved network throughput and performance.

Enhanced A-MPDU [1]

  • Definition: Enhanced A-MPDU is an advanced frame aggregation technique used in IEEE 802.11ax to improve network efficiency.

  • Purpose: It aims to reduce the header overhead associated with each frame, allowing for more data to be transmitted in a single frame.

  • Two-Level Aggregation: This method involves combining multiple MPDUs into a single frame, which reduces the overhead and improves throughput.

  • Benefits: Enhanced A-MPDU helps in achieving higher data rates and better network performance by minimizing the overhead.

  • Use Case: It is particularly useful in high-density environments where efficient use of bandwidth is critical.







Frame Aggregation [2]

  • Definition: Frame aggregation is a technique used to combine multiple frames into a single transmission unit.

  • Types: There are two main types of frame aggregation in IEEE 802.11 standards: A-MSDU (Aggregate MAC Service Data Unit) and A-MPDU (Aggregate MAC Protocol Data Unit).

  • A-MSDU: This method allows multiple MSDUs to be sent to the same receiver concatenated in a single MPDU.

  • A-MPDU: This method joins multiple MPDU subframes with a single leading PHY header, offering higher MAC throughput compared to A-MSDU.

  • Benefits: Frame aggregation reduces the overhead associated with each individual frame, leading to improved network efficiency and throughput.






Header Overhead Reduction [1]

  • Objective: The primary goal of header overhead reduction is to minimize the amount of non-data information transmitted, thereby increasing the efficiency of data transmission.

  • Enhanced A-MPDU: This technique specifically targets the reduction of header overhead by aggregating multiple MPDUs into a single frame.

  • Impact: Reducing header overhead is crucial for achieving higher data rates and better network performance, especially in high-density environments.

  • Methods: Techniques like two-level aggregation and frame aggregation are employed to reduce the header overhead.

  • Benefits: Lower header overhead leads to more efficient use of the available bandwidth, resulting in improved network throughput and performance.






Efficiency [1]

  • Definition: Efficiency in the context of IEEE 802.11ax refers to the effective use of available bandwidth to maximize data throughput.

  • Enhanced A-MPDU: By reducing header overhead, the enhanced A-MPDU technique allows for more efficient use of the available bandwidth.

  • Frame Aggregation: Techniques like A-MSDU and A-MPDU aggregation contribute to improved efficiency by reducing the overhead associated with each frame.

  • Impact: Higher efficiency leads to better network performance, especially in high-density environments where bandwidth is a critical resource.

  • Benefits: Improved efficiency results in higher data rates, reduced latency, and better overall user experience.







Implementation [2]

  • Configuration: Enhanced A-MPDU and A-MSDU can be configured per radio band and per 802.1p priority.

  • CLI Commands: Configuration is typically done via CLI commands, such as 'config 802.11a 11nsupport a-mpdu tx priority'.

  • Settings: Different priorities can be enabled or disabled for A-MPDU and A-MSDU transmission.

  • Verification: Settings can be verified using commands like 'show 802.11a' or 'show 802.11b'.

  • Example: To enable A-MPDU for priority 6 and 7 frames, the command would be 'config 802.11a 11nsupport a-mpdu tx priority 6 enable'.
