Introduction

PEDOT:PSS is a widely used material in organic electronic devices due to its high conductivity and transparency.

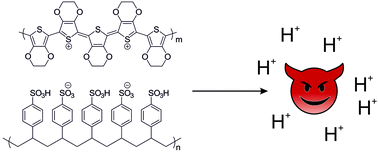

The acidity of PEDOT:PSS is primarily due to the sulfonic acid groups in the PSS component, which release protons (H+).
Commercial formulations of PEDOT:PSS typically have a pH value between 1.5 and 2.5.
The strong acidity of PEDOT:PSS can lead to degradation of device components, such as indium tin oxide (ITO) electrodes.
Strategies to mitigate the acidity include using neutral PEDOT:PSS formulations, alternative polyelectrolytes, and barrier layers.

Composition: PEDOT:PSS is composed of poly(3,4-ethylenedioxythiophene) (PEDOT) and poly(styrene sulfonate) (PSS).
Conductivity: The material is known for its high electrical conductivity, which can be adjusted by varying the doping level.
Transparency: PEDOT:PSS films are highly transparent, making them suitable for optoelectronic applications.
pH Range: Commercial formulations of PEDOT:PSS typically have a pH value between 1.5 and 2.5.
Acidity Source: The sulfonic acid groups in PSS release protons, contributing to the material's acidity.

Degradation: The acidity of PEDOT:PSS can cause degradation of device components, such as ITO electrodes.
Corrosion: Acidic PEDOT:PSS can corrode metal contacts, leading to reduced device stability and performance.
Defect States: Acidity can create defect states in adjacent layers, affecting charge transport and device efficiency.
Hygroscopicity: PEDOT:PSS is hygroscopic, absorbing moisture from the environment, which can further degrade device performance.
Lifetime: Devices using acidic PEDOT:PSS often have shorter lifetimes due to these degradation mechanisms.

Neutralization: Neutral PEDOT:PSS can be achieved by treating the material with bases such as sodium hydroxide or guanidine.
Properties: Neutral PEDOT:PSS formulations often have reduced conductivity and altered optical properties compared to their acidic counterparts.
Stability: Devices using neutral PEDOT:PSS show improved stability and longer lifetimes.
Challenges: Neutralizing PEDOT:PSS can lead to increased surface roughness and reduced work function, affecting device performance.
Examples: Commercial neutral PEDOT:PSS formulations, such as Clevios Jet N, are available for specific applications.

Different Polyelectrolytes: PEDOT can be formulated with alternative polyelectrolytes to reduce acidity.
Examples: Polyelectrolytes such as polysaccharides and polystyrenesulfonylimide derivatives have been explored.
Properties: These formulations can offer varying pH levels, conductivity, and processability.
Challenges: Strong acidic groups are often required for effective doping, which can limit the options for alternative polyelectrolytes.
Potential: Alternative polyelectrolytes can provide a balance between performance and reduced acidity.

Purpose: Barrier layers are used to prevent the acidic PEDOT:PSS from directly contacting sensitive device components.
Materials: Common barrier materials include self-assembled monolayers (SAMs), graphene oxide, and metal oxides.
Effectiveness: Barrier layers can significantly reduce indium migration from ITO and improve device stability.
Examples: SAMs such as terephthalic acid and silane-based SAMs have been used effectively.
Performance: Devices with barrier layers often show improved performance and longer lifetimes compared to those without.

Metal Oxides: Solution-processed metal oxides such as MoO3, WO3, and NiOx can be used as alternatives to PEDOT:PSS.
Copper Complexes: Materials like CuSCN and CuI offer high transparency and stability as hole transport layers.
Graphene Oxide: Graphene oxide can be used to improve device performance and stability.
Advantages: These alternatives often provide higher work functions, better transmittance, and improved stability.
Applications: Solution-processed alternatives are used in various organic electronic devices, including OPVs and OLEDs.
