Introduction

  • Press brakes are essential machines in metalworking, used to bend and fold sheet metal into various shapes.

  • There are several types of press brakes, each suited for specific applications and materials.

  • The main types include mechanical, hydraulic, pneumatic, servo-electric, CNC, and hybrid press brakes.

  • Mechanical press brakes are known for their high tonnage capacity and are commonly used in structural steel fabrication and automotive industries.

  • Hydraulic press brakes offer precise control and are suitable for heavy plate bending and high-strength alloys.

  • Pneumatic press brakes are ideal for light gauge materials and are often used in forming and shaping operations.

  • Servo-electric press brakes are known for their accuracy and energy efficiency, making them suitable for high-precision applications.

  • CNC press brakes utilize computer technology for precise bending and are used in customized fabrication and complex multi-bend parts.

  • Hybrid press brakes combine features of hydraulic and electric press brakes, offering environmental benefits and high precision.

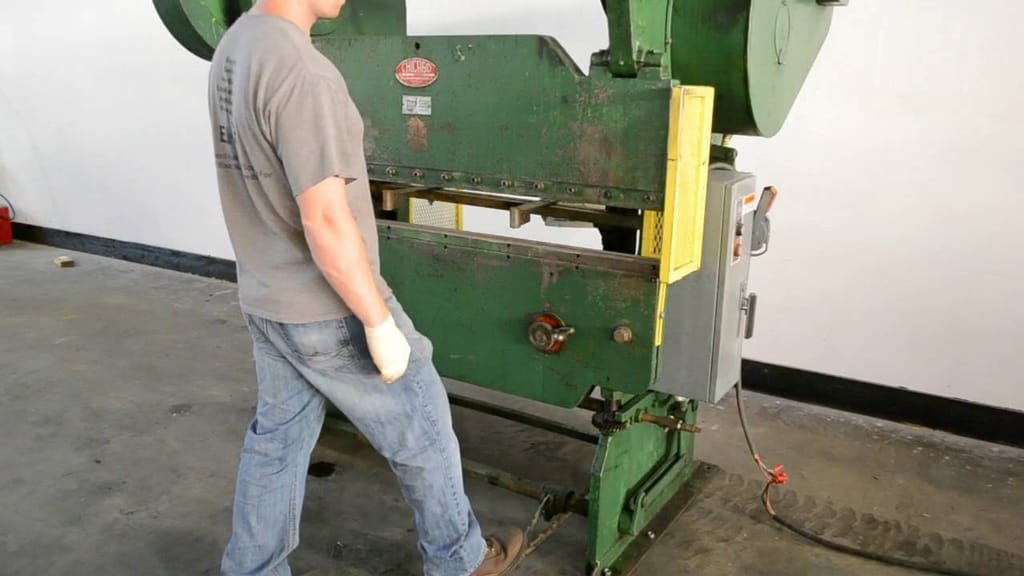

Mechanical Press Brakes [1]

  • Operation: Uses a clutch system and mechanical flywheel to store and transfer kinetic energy.

  • Materials: Suitable for stainless steel, mild steel, copper, brass, and aluminum.

  • Applications: Commonly used in structural steel fabrication, automotive, and aerospace industries.

  • Advantages: Enhanced productivity and precise control, ideal for high-tonnage applications.

  • Disadvantages: Limited speed control and high maintenance requirements.







Hydraulic Press Brakes [1]

  • Operation: Uses two synchronized hydraulic cylinders to move the upper beam.

  • Materials: Best suited for copper, brass, high-strength alloys, stainless steel, and aluminum.

  • Applications: Heavy plate bending, aluminum extrusion bending, and pipe and tube bending.

  • Advantages: User-friendly with intuitive controls, high bending force and accuracy, energy-saving options.

  • Disadvantages: Expensive, takes up more floor space, and is significantly heavier.

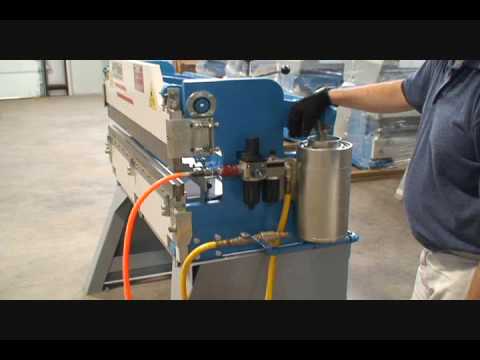

Pneumatic Press Brakes [1]

  • Operation: Uses pneumatic (air) power for bending metal sheets.

  • Materials: Works best with light gauge materials like thin sheet metal, plastics, and non-ferrous metals.

  • Applications: Forming and shaping operations, precision and delicate parts.

  • Advantages: More affordable, fast setup and adjustment time, minimal training required.

  • Disadvantages: Cannot bend thick materials due to low force capacity, noisy compared to hydraulic press brakes.







Servo-Electric Press Brakes [2]

  • Operation: Uses electric motors and ball screws to control the bending process.

  • Materials: Suitable for high-precision applications requiring fast setup times.

  • Applications: High-precision and fast setup applications.

  • Advantages: Known for accuracy, speed, and energy efficiency.

  • Disadvantages: Higher initial cost compared to other types.







CNC Press Brakes [1]

  • Operation: Uses computer technology for precise bending.

  • Materials: Capable of bending stainless steel, aluminum, exotic metals, and mild steel.

  • Applications: Heavy plate bending, customized fabrication, complex and multi-bend parts.

  • Advantages: Consistent bending quality, built-in data-logging capabilities, reduces material waste.

  • Disadvantages: Expensive, requires specialized maintenance, operators need technical expertise.







Hybrid Press Brakes [1]

  • Operation: Combines features of hydraulic and electric press brakes.

  • Materials: Suitable for various metals but not for high energy levels exceeding 250 metric tonnes.

  • Applications: Environmentally friendly and high precision applications.

  • Advantages: Sustainable, environmentally friendly, auto shut-off mechanisms.

  • Disadvantages: Limited to lower energy applications.







Applications of Press Brakes [3]

  • Automotive Industry: Used in the formation of automotive panels and components.

  • Aerospace Industry: Essential for creating airframes and other precise components.

  • HVAC Industry: Used for bending components in heating, ventilation, and air conditioning systems.

  • Electrical Industry: Forms parts for electrical cabinets, air conditioning shells, and refrigerators.

  • Kitchen and Catering Industry: Bends stainless steel for kitchen appliances and tools.

  • Construction Industry: Used in the production of metal cladding and structural components.

  • Decoration Industry: Creates components for stainless steel doors, windows, and elevators.

  • Shipbuilding Industry: Bends large metal sheets for ship components.
