What Are The Key Differences Between A Simple Volume And Other Volume Types In Windows?

Generated with sparks and insights from 67 sources

Introduction

Simple Volume: A simple volume is a portion of a physical disk that functions as though it were a physically separate unit. It can consist of a single region on a disk or multiple regions of the same disk that are linked together.
Spanned Volume: A spanned volume combines areas of unallocated space from multiple disks into one logical volume. Data is written sequentially, filling space on one physical drive before moving to the next.
Striped Volume: A striped volume stores data in equal stripes between two or more dynamic drives, using RAID-0. This increases read and write performance but offers no fault tolerance.
Mirrored Volume: A mirrored volume provides data redundancy by duplicating data on two separate physical disks. If one disk fails, the data remains accessible from the other disk.
RAID-5 Volume: A RAID-5 volume stripes data and parity across three or more disks, providing fault tolerance. If a portion of a disk fails, the data can be reconstructed from the remaining data and parity.

Definition: A simple volume is a portion of a physical disk that functions as though it were a physically separate unit.
Configuration: It can consist of a single region on a disk or multiple regions of the same disk that are linked together.
Usage: Simple volumes are used when you have enough disk space on a single drive to hold your entire volume.
Disk Type: Simple volumes can only be created on dynamic disks.
Extension: When extending a simple volume to include unallocated space on the same disk, it remains a simple volume.

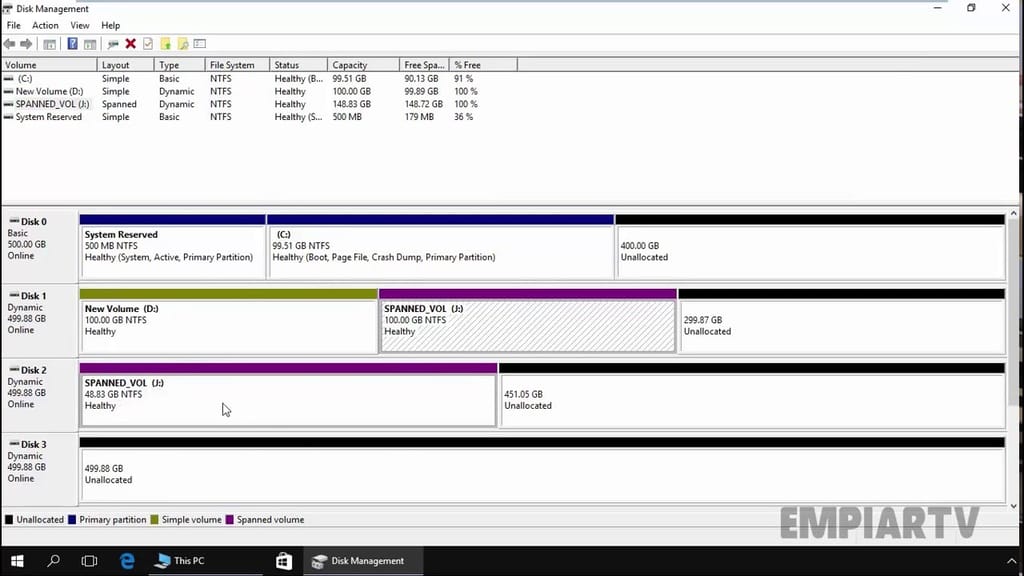

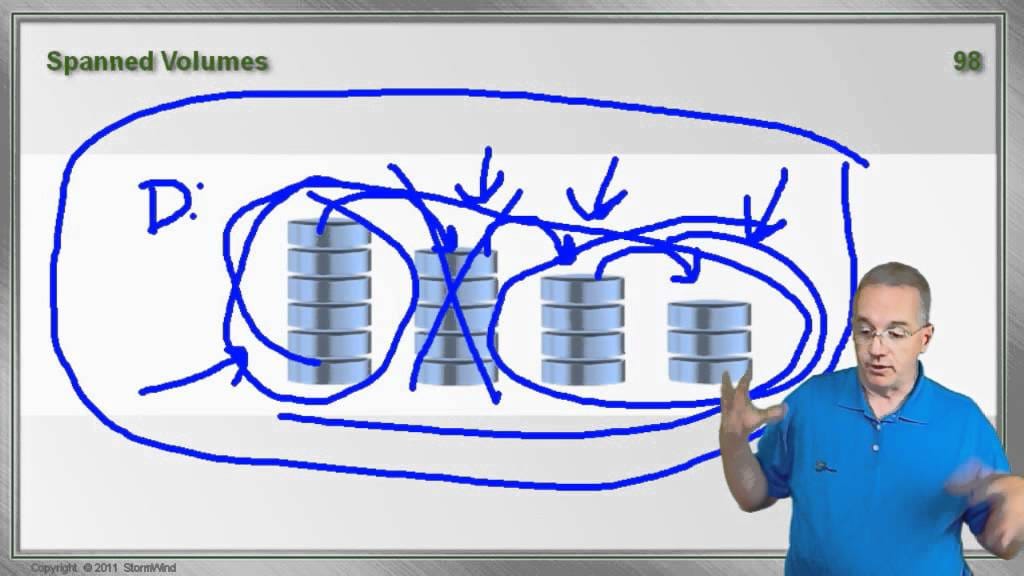

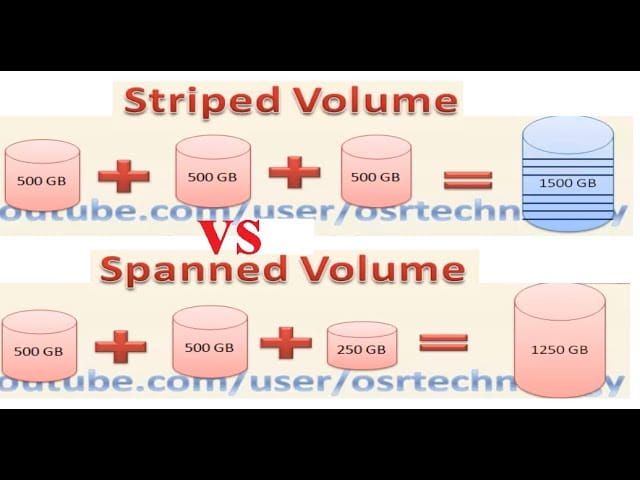

Definition: A spanned volume combines areas of unallocated space from multiple disks into one logical volume.
Configuration: Up to 32 dynamic drives can be used in a spanned volume configuration.
Usage: Spanned volumes are used to dynamically increase the size of a dynamic volume.
Data Writing: Data is written sequentially, filling space on one physical drive before moving to the next.
Disadvantage: If any drive in the spanned volume set fails, you lose access to all of the data in the spanned set.

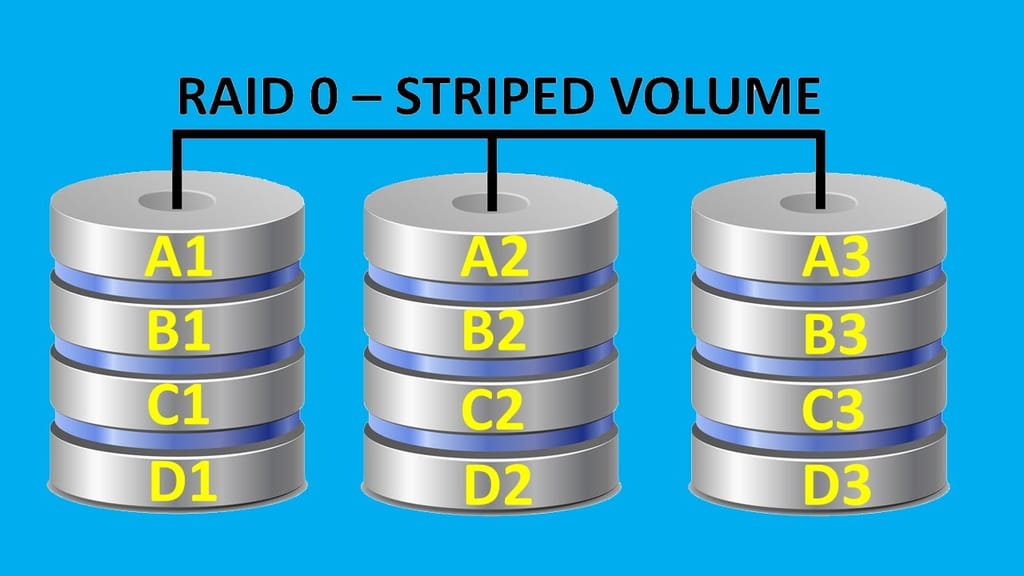

Definition: A striped volume stores data in equal stripes between two or more dynamic drives.
Configuration: Uses RAID-0, which stripes data across multiple disks.
Performance: Increases read and write performance due to multiple I/O operations.
Usage: Typically used to combine the space of several physical drives into a single logical volume and increase disk performance.
Disadvantage: Offers no fault tolerance; if one of the disks fails, the entire volume fails.

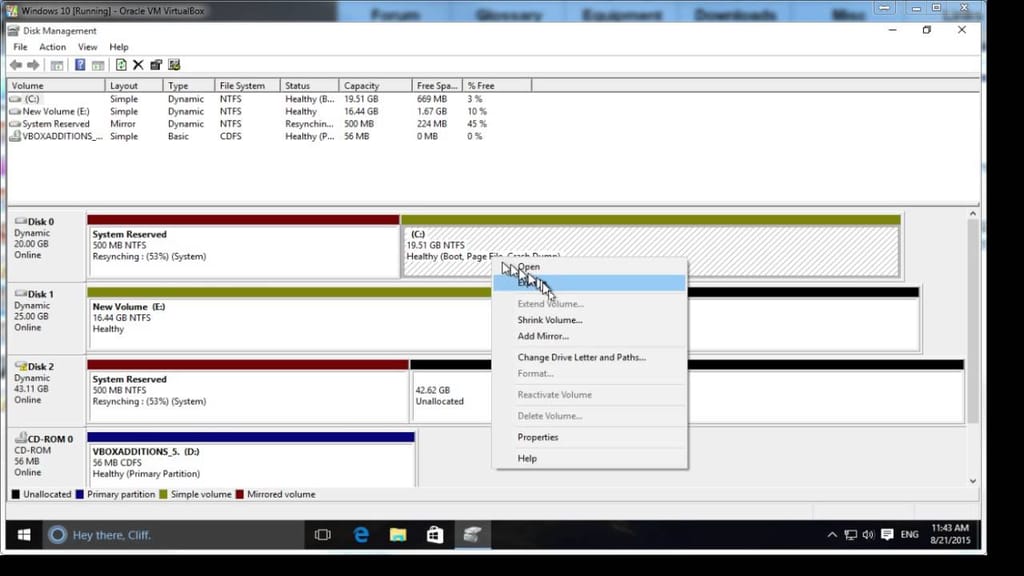

Definition: A mirrored volume provides data redundancy by duplicating data on two separate physical disks.
Configuration: Uses two copies, or plexes, of the volume to duplicate the data.
Usage: All data written to the mirrored volume is written to both plexes, which are located on separate physical disks.
Fault Tolerance: If one of the physical disks fails, the data on the failed disk becomes unavailable, but the system continues to operate using the unaffected disk.
Advantage: Provides fault tolerance and data redundancy.

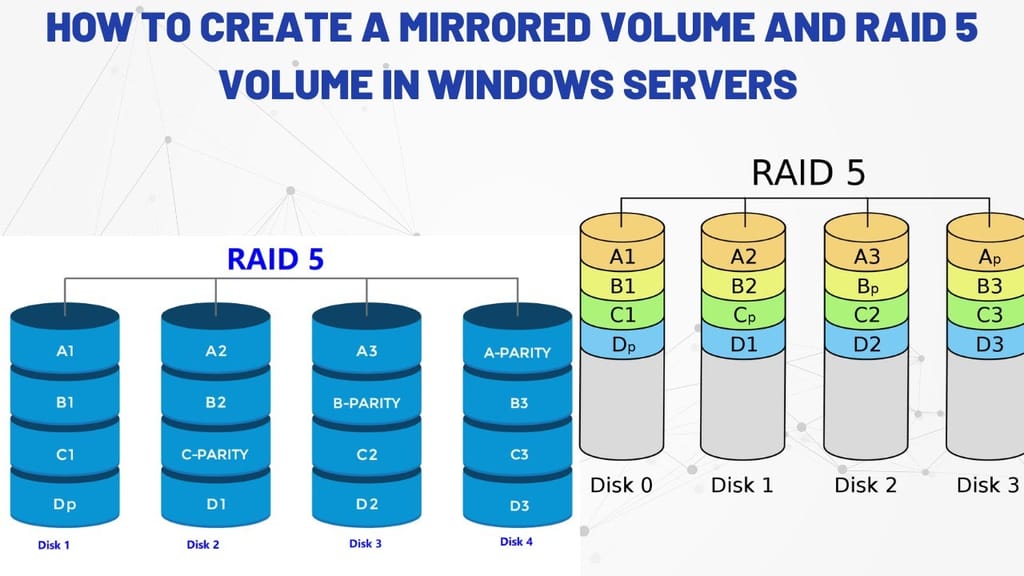

Definition: A RAID-5 volume stripes data and parity across three or more disks.
Configuration: Provides fault tolerance by using data and parity striped intermittently across the disks.
Usage: If a portion of a disk fails, the data can be reconstructed from the remaining data and parity.
Advantage: Good solution for data redundancy in environments with high read activity.
Disadvantage: Requires at least three disks and can be complex to manage.

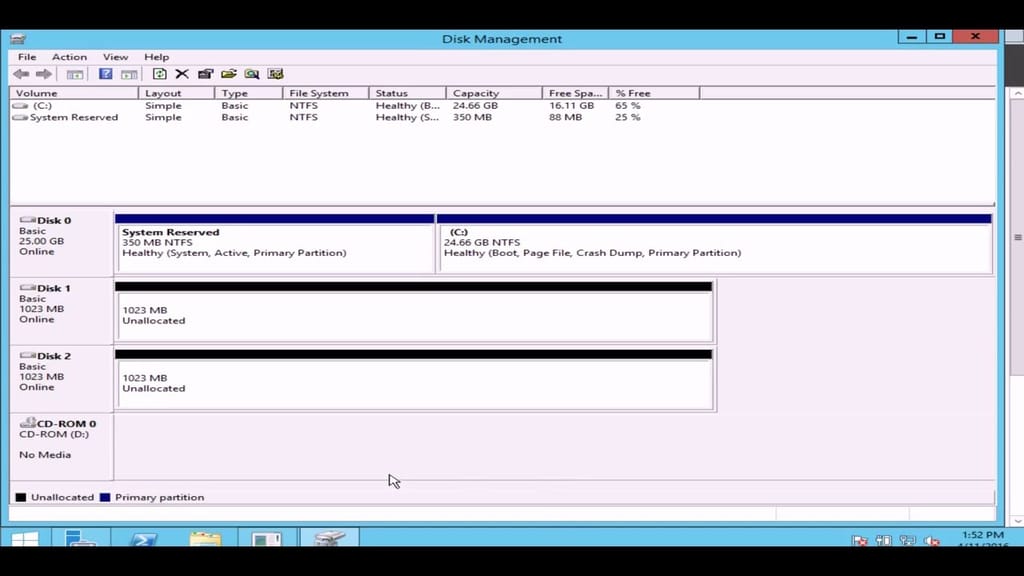

Basic Disks: Contain partitions such as primary partitions and logical drives, formatted with a file system to become a volume for file storage.
Dynamic Disks: Allow the creation of volumes that span multiple disks (spanned and striped volumes) and fault-tolerant volumes (mirrored and RAID-5 volumes).
Partition Styles: Both basic and dynamic disks can use MBR or GPT partition styles.
Volume Management: Dynamic disks offer greater flexibility for volume management due to the use of a database to track information about dynamic volumes.
Conversion: Basic disks can be converted to dynamic disks and vice versa, but there are disk space considerations.

Volume: A single accessible storage area with a single file system, created on a dynamic disk.
Partition: A logical division of a hard disk, created on a basic disk.
Types: Volumes include simple, mirrored, striped, spanned, and RAID-5 volumes. Partitions include primary, logical, and extended partitions.
Max Size: The max size of a volume can be larger than that of a partition as volumes can span multiple disks.
Creation: Volumes are created on dynamic disks, while partitions are created on basic disks.
